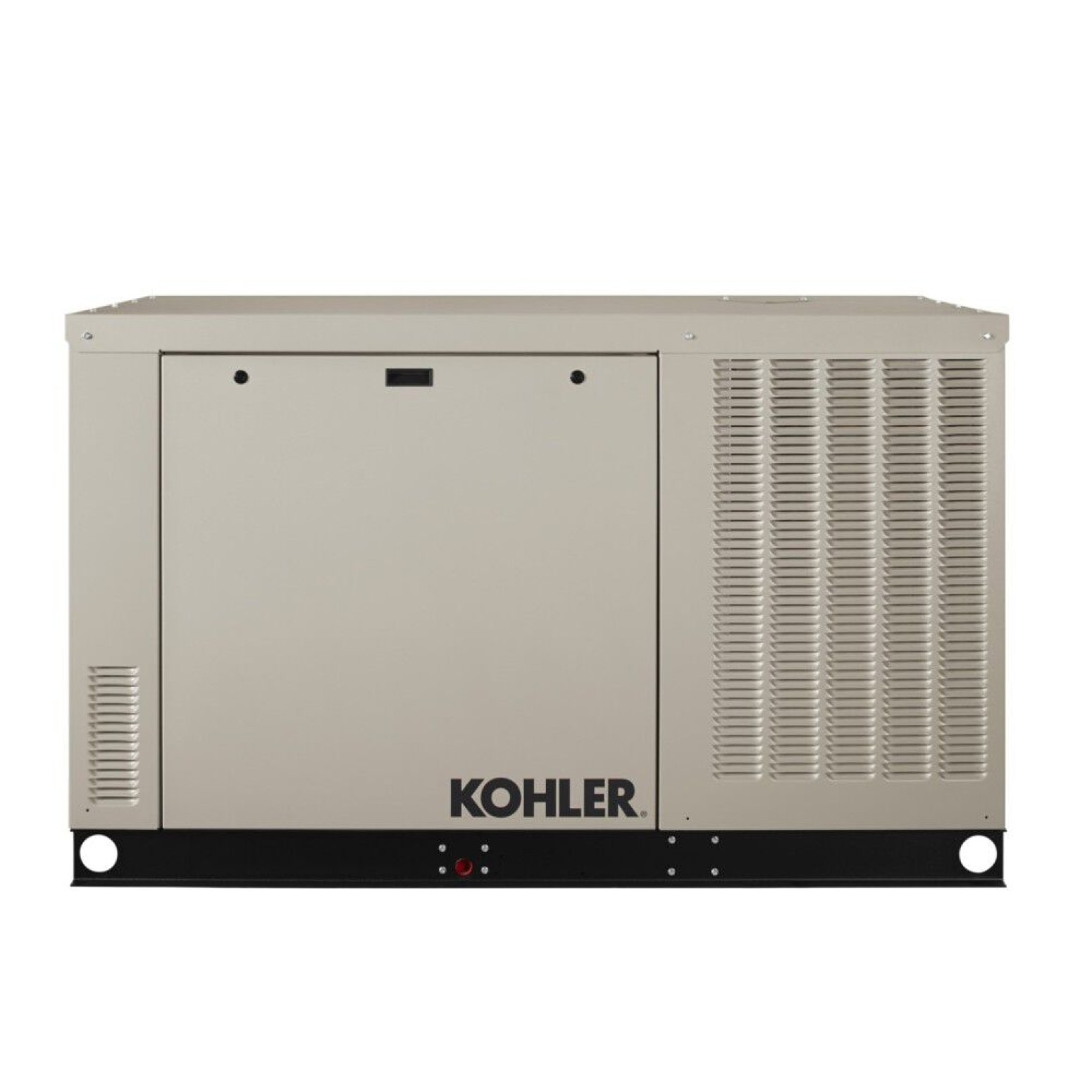

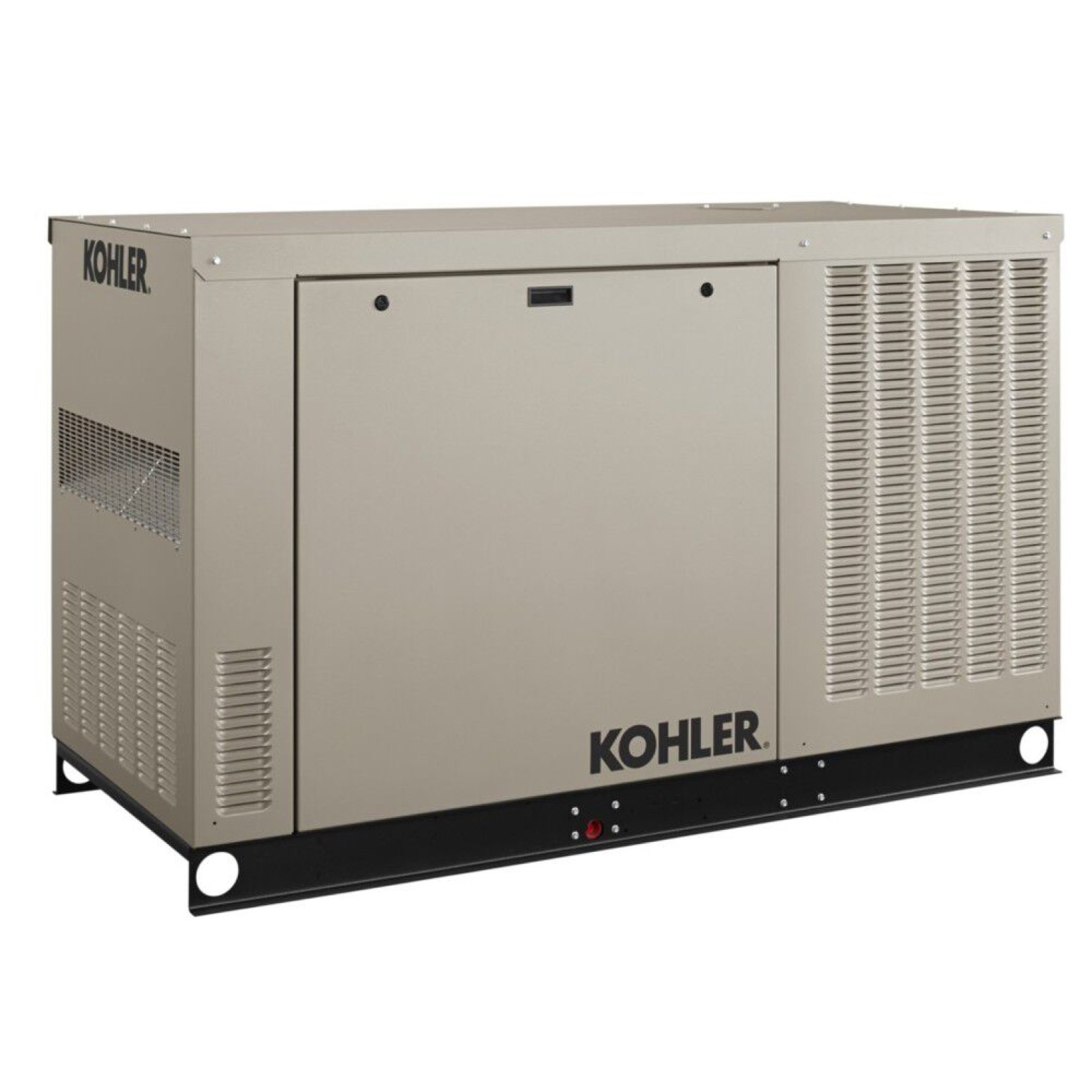

Kohler 30kW Liquid Cooled (208-240-480V 3-Phase) Standby Generator | 30RCLA
The Kohler 30kW Generator provides high quality power with advanced voltage and frequency regulation and low harmonic distortion. Neighborhood friendly operation at 60 dBA and 52 dBA during exercise. The Liquid Cooled Kohler 2.2 Liter turbocharged Inline 4 cylinder engine provides plenty of power at 1800 RPM. The electronic governor maintains frequency within 1%. From No Load to a Full Load Condition, Total Harmonic Distortion (THC) is less than 5%.
EPA Emissions. Not for Sale in California or Massachusetts.
The 30kW Kohler Generator powers everything for your business including air conditioning, heating, lights, security, and office equipment. Seconds after an outage turns out the lights, the 304RCLA restores power. Runs on Natural Gas or Propane. Includes Kohler Remote Management.
Kohler's Premium Limited Warranty Covers Parts, Labor, and Travel for 5-Years/2000-Hours.
Made in the USA-The 30kW Kohler Generator is manufactured in the United States.
30kW Kohler Generator Features
- Aluminum Sound Enclosure + Silencer
- UL-2200 Listed
- GFCI Service Outlet 120/240 Volt
- Integral Vibration Isolation
- Oil Drain Extension
- NEC Prime Mover Shutdown Switch
- Remote Monitoring & Control of Generator & ATS System
- RDC2 Controller + Built-In Battery Charger
30kW Generator RDC2 Digital Controller
The digital controller manages all aspects of the standby generator system.
Some controller features apply only to use with an RXT Transfer Switch. Please see the specifications for RDC2 Controller Features and the Owner Manual for a detailed explanation and implementation of controller features.
Main RDC2 Features Include:
- Membrane Keypad
- LED Indicators
- 2 Line Backlit LCD Screen with contrast control.
- Digital isochronous governor maintains speed at all loads.
- Digital voltage regulation ±1% from no load to full load
- Programmable exerciser
- Ethernet connector
- Diagnostic Messages and Maintenance Reminders
- ATS Status and Control (this feature requires an RXT transfer switch)
- Programmable Interface Module (PIM) Status
Specifications
Model
Model Number : 30RCLA
Manufacturer : Kohler
Made In USA : Yes
Rated Watts : 30kW
Rated Watts Filter : 30 to 39 kW
Rated Amps :
- 208V - 106 Amps
- 240V - 92 Amps
- 480V - 46 Amps
Voltage : 3-Phase
Voltage Filter : Select 208V 240V 480V
A/C Ton Rating : 5-Ton
Enclosure : Aluminum
UL Listed : UL-2200
Decibel Rating : 60 dBA Normal Operation | 52 dBA Exercise
Type : Standby Generator
Features
Starting System : Automatic
Low Oil Alert : Low Oil Shutdown
Mainline Breaker :
- 208V - 125 Amps
- 240V - 100 Amps
- 480V - 50 Amps
Battery Requirement : 12-Volt Group 24 630 CCA
Weight : 1320 Pounds
Dimensions : 74L x 32.9W x 46.0H inches
Warranty Information
Consumer Warranty : Kohler 5-Year or 2000-Hour Limited Warranty
Commercial Warranty : Kohler 5-Year or 2000-Hour Limited Warranty
Engine
Engine Brand : Koher KG2204T
Engine Size : 2.2 Liter Turbocharged Inline 4-Cylinder
Engine RPM : 1800 RPM
Cooling System : Liquid Cooled
Alternator
Alternator Type : 4-Pole, Rotating Field, 12-Lead
Frequency : 60 Hertz
Auto Voltage Regulation : Yes
Fuel
Fuel Type : Natural Gas (NG) or Propane (LPG)
Fuel Type Filter : Natural Gas or Propane
Fuel Gauge : No
NG Power Capacity : 30kW
LP Power Capacity : 30kW
NG Consumption @ Full Load : 424 Cubic Feet per Hour
NG Consumption @ Half Load : 268 Cubic Feet per Hour
LP Consumption @ Full Load : 4.6 Gallons per Hour
LP Consumption @ Half Load : 2.7 Gallons per Hour
