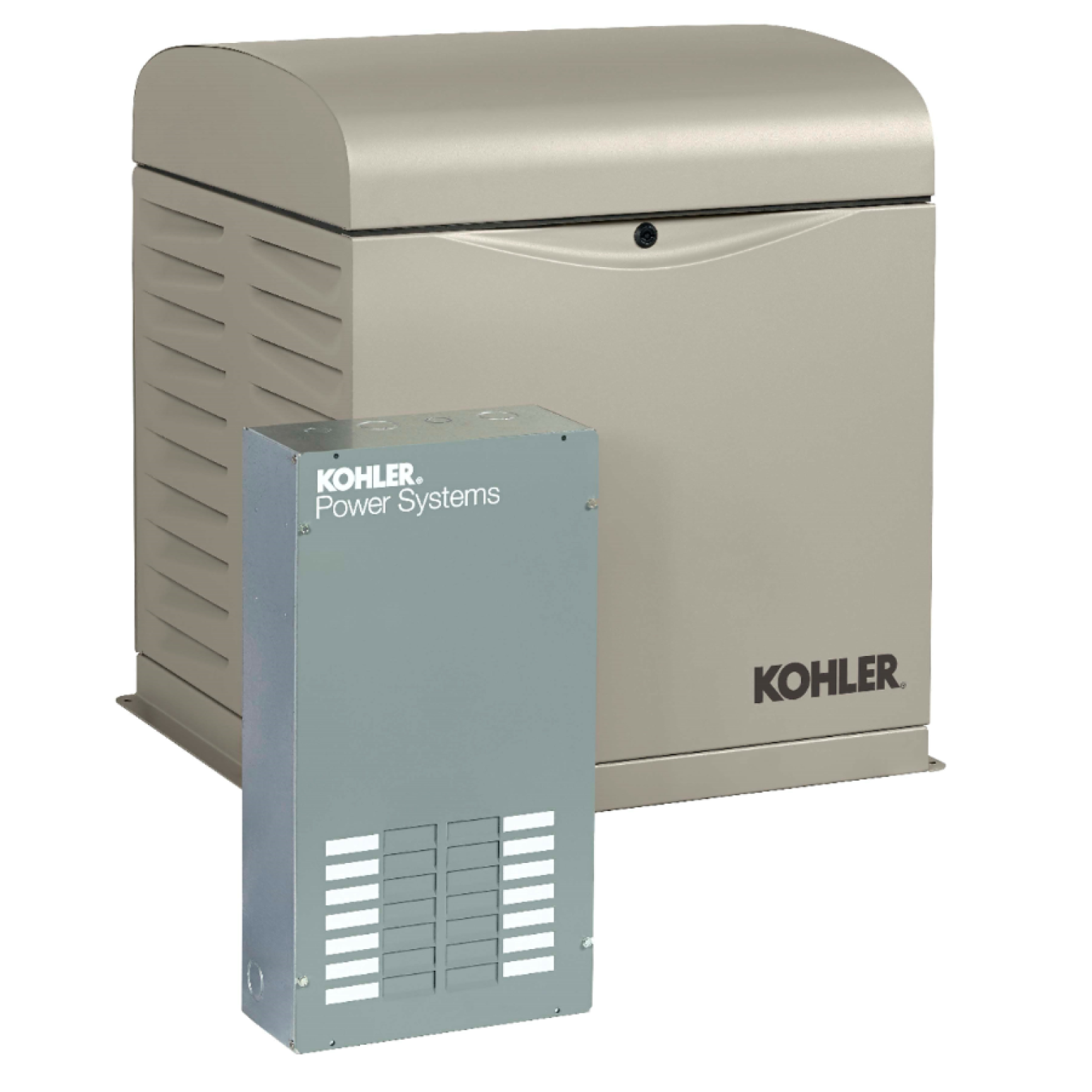

Kohler 10kW Air Cooled Standby Generator w/ 100-Amp 12-Circuit Load Center ATS | 10RESVL-100LC12

Kohler 10kW Air Cooled Standby Generator w/ 100-Amp 12-Circuit Load Center ATS | 10RESVL-100LC12

The Kohler 10kW Generator 10RESVL-100LC12 is a complete Home Standby Generator Package with 100-Amp 12-Space Load Center Automatic Transfer Switch and Home Energy Generator Management System. When you lose power during an outage or blackout, the 10kW Kohler generator restores power fast to keep all your essential and critical loads up and working. The fridge and freezer stay cold, lights work, and pumps run when they should. The heat stays on in the winter and the AC runs in the summer. This generator and transfer switch will power most appliances in smaller home or a few critical items in larger homes. Restores power in as little as 10 seconds after an outage hits.

Power to start large loads without dropping power to other appliances. With a motor starting capacity of 16.8kVA, the Kohler 10RESV starts and runs up to a 3-Ton Air Conditioner in addition to a 5kW house load.

Exceptional digital voltage and frequency regulation for clean, smooth power with low harmonic distortion to protect sophisticated electronics.

Great for tight lot lines-18-inch to home installation distance.

Kohler's 725cc KT725 4-Cycle OHV engine handles tough applications. Runs on LP or NG and easily switches between the two in the field.

Kohler 10kW Generator Features

• Reliable Commercial-Grade Engine Runs on Propane or Natural Gas
• Powers Heat and Air Conditioning + Appliances and Electronics
• Suitable for Home Standby or Off-Grid Applications
• Built-In Mounting Pad Saves Installation Time & Money-No Need for Concrete
• Simple Terminal Block for Easy Field Connections
• Starts and Runs Heavy Loads-16.8kVA Motor Starting Capacity
• Steel Enclosure with Automotive-Grade Paint for Advanced Corrosion Protection'

The RDC2 Controller integrates control for the generator set, RXT transfer switch, load management, and programmable interface module (PIM.)

• Membrane Keypad: OFF, AUTO, RUN Pushbuttons with Arrow and Select Buttons for Menus.
• LED Indicators: OFF, AUTO, RUN Modes
• LED Indicators: Utility Power, Generator Availability, Transfer Switch Position
• LCD Display: 2 lines 16 Characters each with adjustable contrast for excellent visibility in all light conditions.

Includes a Kohler 5-Year / 2000-Hour Limited Warranty for on-grid (standby) installations with electric utility service.

*Requires a 12-Volt Group 51 Battery Rated for 500 Cold Cranking Amps.

Specifications
