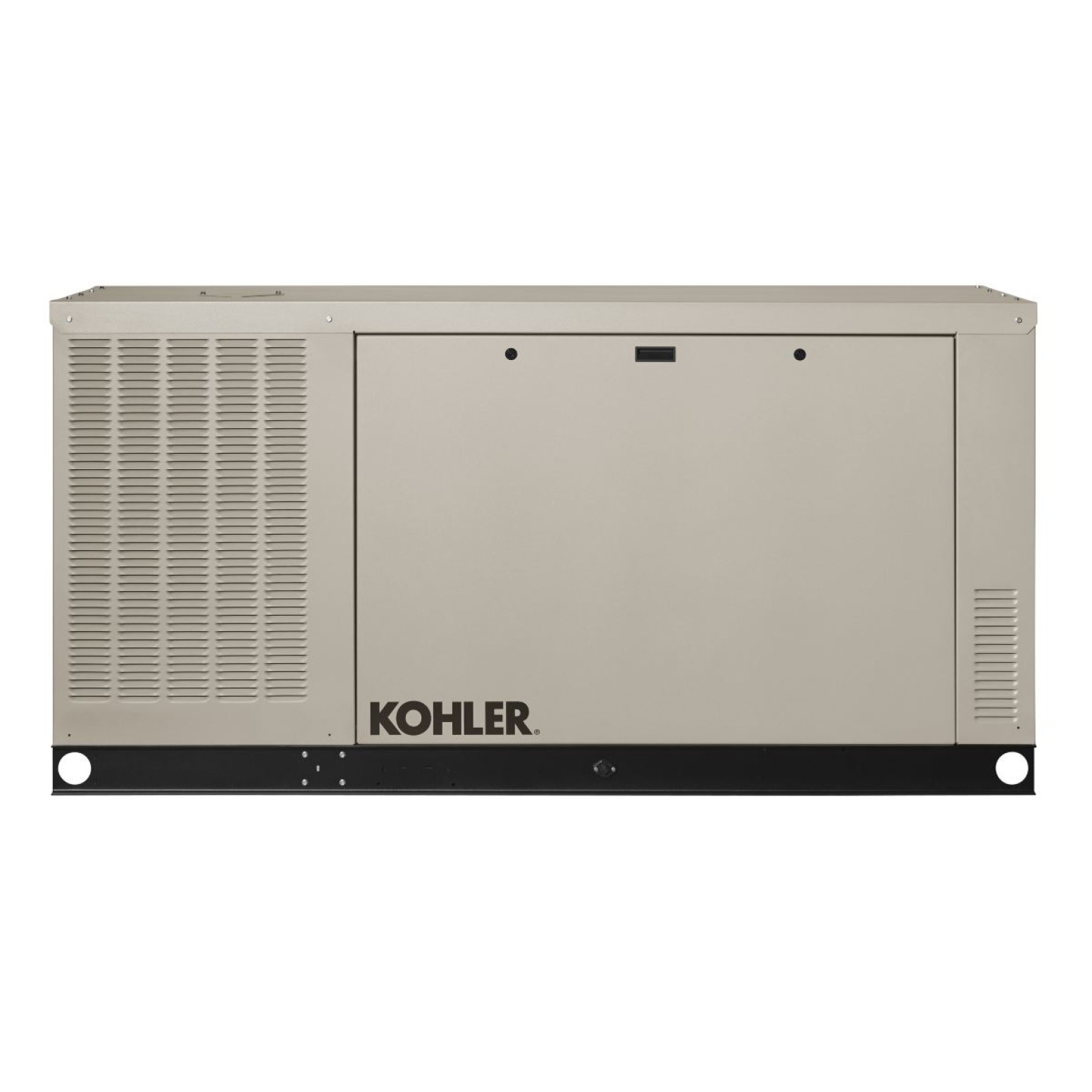

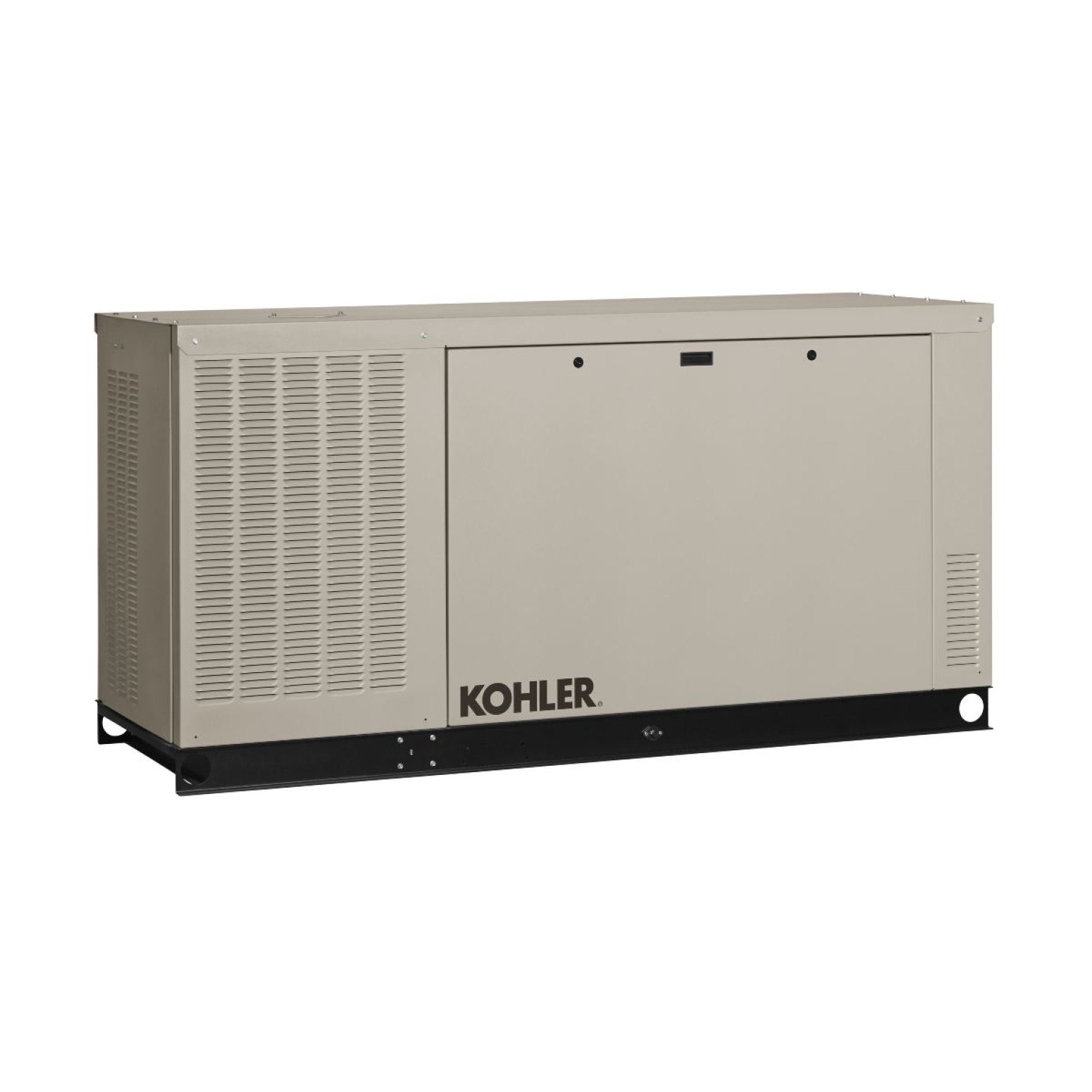

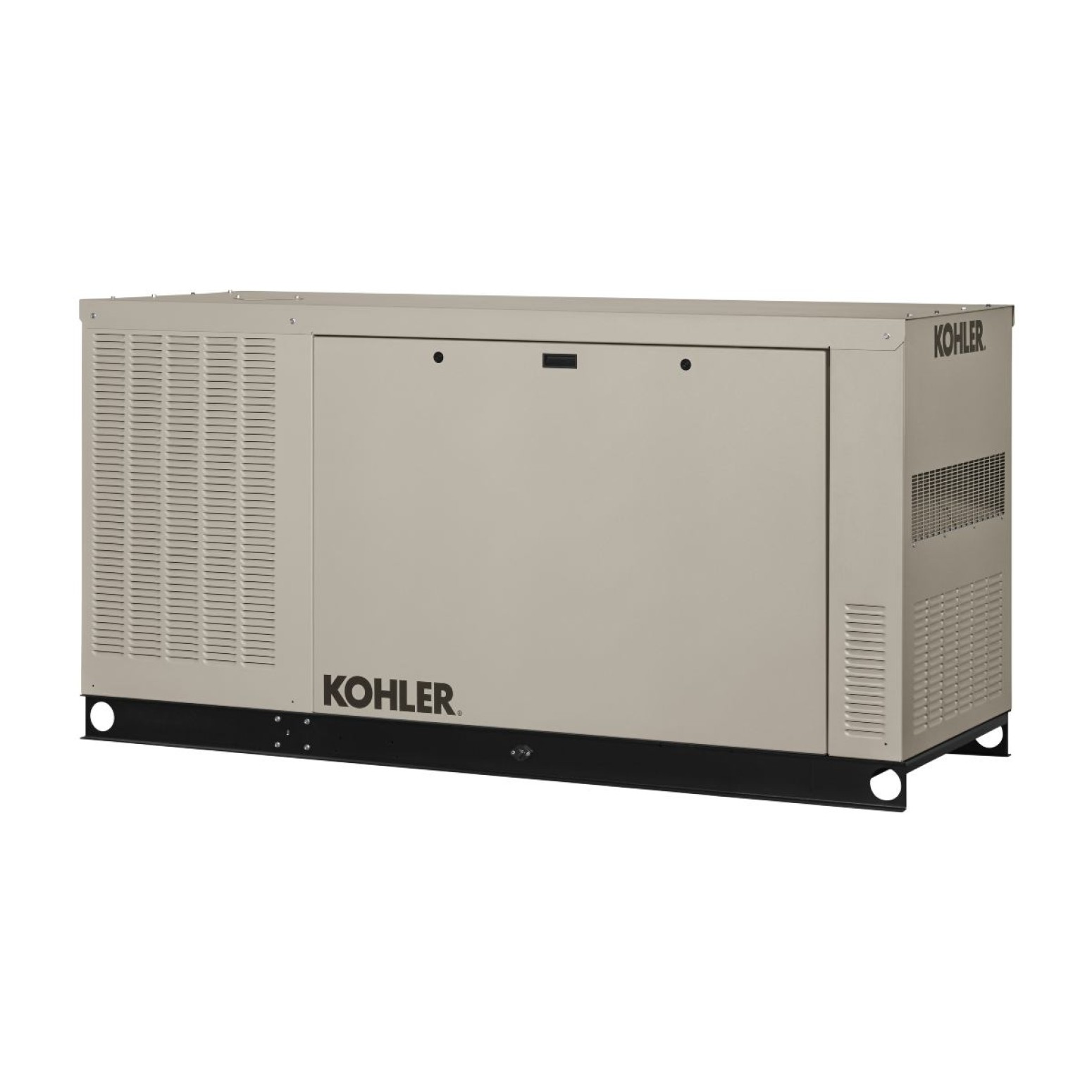

Kohler 60RCLB 60kW (208V 240V 480V) 3-Phase Liquid Cooled Standby Generator
The Kohler 60kW Generator provides high quality power with advanced voltage and frequency regulation and low harmonic distortion. Neighborhood friendly operation at 61 dBA (57 dBA Exercise.) The Liquid Cooled Kohler 6.2 Liter V-8 engine provides plenty of power at 1800 RPM. The electronic governor maintains frequency within 1%. From No Load to a Full Load Condition, Total Harmonic Distortion (THC) is less than 5%.
EPA Emissions. Not for Sale in California or Massachusetts.
The Kohler 60 kW Generator powers everything for your business including air conditioning, heating, lights, security, and office equipment. Seconds after an outage turns out the lights, the 60RCLB restores power. Runs on Natural Gas or Propane. Includes Kohler OnCue Plus Wireless Remote Management.
Kohler's Premium Limited Warranty Covers Parts, Labor, and Travel for 5-Years/2000-Hours.
Made in the USA-Kohler manufactures the 60kW Generator in the United States.
Kohler 60 kW Generator Features
- Aluminum Sound Enclosure + Silencer
- UL-2200 Listed
- GFCI Service Outlet 120/240 Volt
- Integral Vibration Isolation
- Oil Drain Extension
- NEC Prime Mover Shutdown Switch
- Remote Monitoring & Control of Generator & ATS System
- RDC2 Controller + Built-In Battery Charger
60kW Generator RDC2 Digital Controller
The digital controller manages all aspects of the standby generator system.
Some controller features apply only to use with an RXT Transfer Switch. Please see the specifications for RDC2 Controller Features and the Owner Manual for a detailed explanation and implementation of controller features.
Main RDC2 Features Include:
- Membrane Keypad
- LED Indicators
- 2 Line Backlit LCD Screen with contrast control.
- Digital isochronous governor maintains speed at all loads.
- Digital voltage regulation ±1% from no load to full load
- Programmable exerciser
- Ethernet connector
- Diagnostic Messages and Maintenance Reminders
- ATS Status and Control (this feature requires an RXT transfer switch)
- Programmable Interface Module (PIM) Status
Specifications
Model
Model Number : 60RCLB
Manufacturer : Kohler
Made In USA : Yes
Rated Watts : 60kW
Rated Watts Filter : 60 to 99 kW
Rated Amps :
- 208V - 209 Amps
- 240V - 181 Amps
- 480V - 91 Amps
Voltage : 3-Phase
Voltage Filter : Select 208V 240V 480V
A/C Ton Rating : 5-Ton
Enclosure : Aluminum
UL Listed : UL-2200
Decibel Rating : 61 dBA Normal Operation 57 dBA Exercise
Type : Standby Generator
Features
Starting System : Automatic
Low Oil Alert : Low Oil Shutdown
Mainline Breaker :
- 208V - 225 Amps
- 240V - 200 Amps
- 480V - 100 Amps
Battery Requirement : 12-Volt Group 24 630 CCA
Weight : 2948 Pounds
Dimensions : 89.8L x 32.9W x 46.5H inches
Warranty Information
Consumer Warranty : Kohler 5-Year or 2000-Hour Limited Warranty
Commercial Warranty : Kohler 5-Year or 2000-Hour Limited Warranty
Engine
Engine Brand : Koher KG6208
Engine Size : 6.2 Liter V-8
Engine RPM : 1800 RPM
Cooling System : Liquid Cooled
Alternator
Alternator Type : 4-Pole, Rotating Field, 12-Lead
Frequency : 60 Hertz
Auto Voltage Regulation : Yes
Fuel
Fuel Type : Natural Gas (NG) or Propane (LPG)
Fuel Type Filter : Natural Gas or Propane
Fuel Gauge : No
NG Power Capacity : 58kW
LP Power Capacity : 60kW
NG Consumption @ Full Load : 1013 Cubic Feet per Hour
NG Consumption @ Half Load : 493 Cubic Feet per Hour
LP Consumption @ Full Load : 9.8 Gallons per Hour
LP Consumption @ Half Load : 5.2 Gallons per Hour
