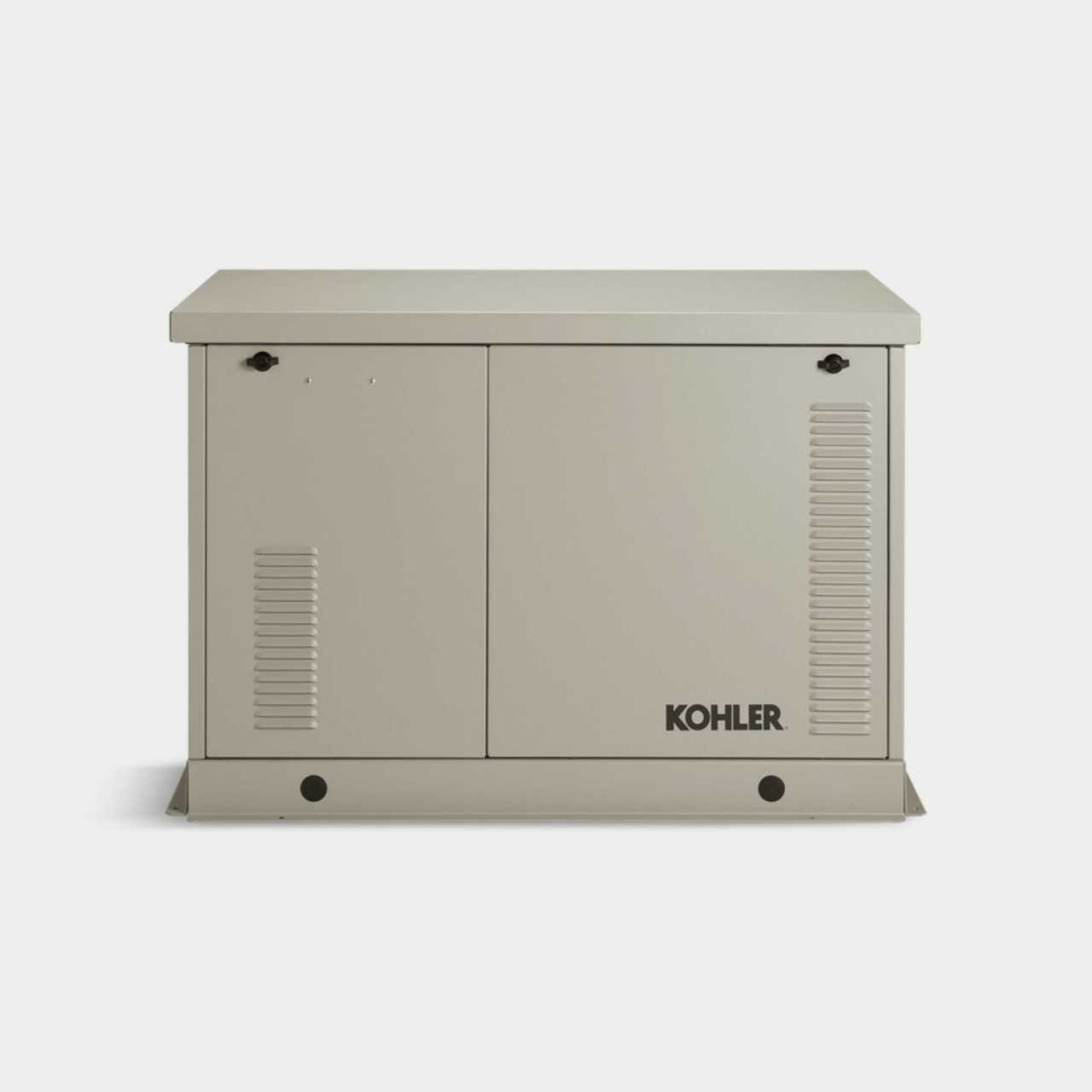

Kohler 12kW Air Cooled Home Standby Generator | 12RES
The Kohler 12RES Generator provides affordable, commercial-grade power for basic power needs. When a bad storm or utility failure knocks out your power, the Kohler 12kW generator keeps your lights on, fridge cold and sump pump working. This generator will power most appliances in smaller homes, or a few critical items in larger homes. Restores power in just 10 seconds after an outage hits.
Suitable for Home Backup or Off-Grid Applications.*
PowerBoost Technology: The power to start large loads without dropping power to other appliances. With a motor starting capacity of 20.3kVA, the 12RES starts and runs a 5-Ton Air Conditioner while powering other home circuits and appliances.
Exceptional digital voltage and frequency regulation for clean, smooth power with low harmonic distortion to protect sophisticated electronics.
Kohler's 725cc CH740 4-Cycle Command Pro engine handles tough commercial applications. Hydraulic lifters eliminate lengthy break-in periods and expensive valve adjustments. Runs on LP or NG and easily switches between the two in the field.
Kohler 12kW Generator Features
- Reliable Commercial-Grade Engine Runs on Propane or Natural Gas
- Powers Heat and Air Conditioning + Appliances and Electronics
- Suitable for Home Standby or Off-Grid Applications
- Built-In Mounting Pad Saves Installation Time & Money-No Need for Concrete
- Simple Terminal Block for Easy Field Connections
- Starts and Runs Heavy Loads-32kVA Motor Starting Capacity
- Steel Enclosure with Automotive-Grade Paint for Advanced Corrosion Protection
An ADC-RES controller designed for sensitive and sophisticated electronics provides digital voltage and frequency regulation. The clean signal output with low total harmonic distortion (THD) exceeds IEEE electric utility standards. The Kohler 12kW Generator fast response time restores power as little as 10 seconds.
Compatible with any single phase RDT series transfer switch from Kohler.
*Requires a 12-Volt Group 26 Battery rated for 525 Cold Cranking Amps
Specifications
Model
Model Number : 12RES
Manufacturer : Kohler Energy
Made In USA : Yes
Rated Watts : 12kW
Rated Watts Filter : 10 to 12.9 kW
Surge Watts : 20.3kVA
Rated Amps : 50 Amps
Voltage : 120/240 Volts Single Phase
Voltage Filter : 120/240 Volts
Enclosure : Steel + Automotive Grade Paint
UL Listed : UL-2200
Decibel Rating : 65 dB(A)
Type : Standby Generator
Series Name : Kohler HSB
Features
Starting System : Automatic
Low Oil Alert : Low Oil Shutdown
Mainline Breaker : 60 Amps
Battery Requirement : 12-Volt BCI Group 26 525 CCA
Mounting Pad : Included
Weight : 400 Pounds
Dimensions : 44.2L x 28.6W x 31.6H inches
Warranty Information
Consumer Warranty :
- Standby: Kohler 5-Year/2000 Hour Limited Warranty
- Off-Grid: Kohler 18-Month/1000 Hour Limited Warranty
Commercial Warranty :
- Standby: Kohler 5-Year/2000 Hour Limited Warranty
- Off-Grid: Kohler 18-Month/1000 Hour Limited Warranty
Engine
Engine Brand : Kohler CH740 4-Cycle
Engine Size : 725cc V-Twin
Engine RPM : 3600 RPM
Cooling System : Air Cooled
Alternator
Alternator Type : 2-Pole, Rotating Field 4-Lead
Frequency : 60 Hertz
Auto Voltage Regulation : ADC RES Controller
Fuel
Fuel Type : LP Propane or NG Natural Gas
Fuel Type Filter : Natural Gas or Propane
NG Power Capacity : 11kW
LP Power Capacity : 12kW
NG Consumption @ Full Load : 216 Cubic-Feet per Hour
NG Consumption @ Half Load : 128 Cubic-Feet per Hour
LP Consumption @ Full Load : 2.6 Gallons per Hour
LP Consumption @ Half Load : 1.45 Gallons per Hour
